B
Every Angle.
Killer Gigs.

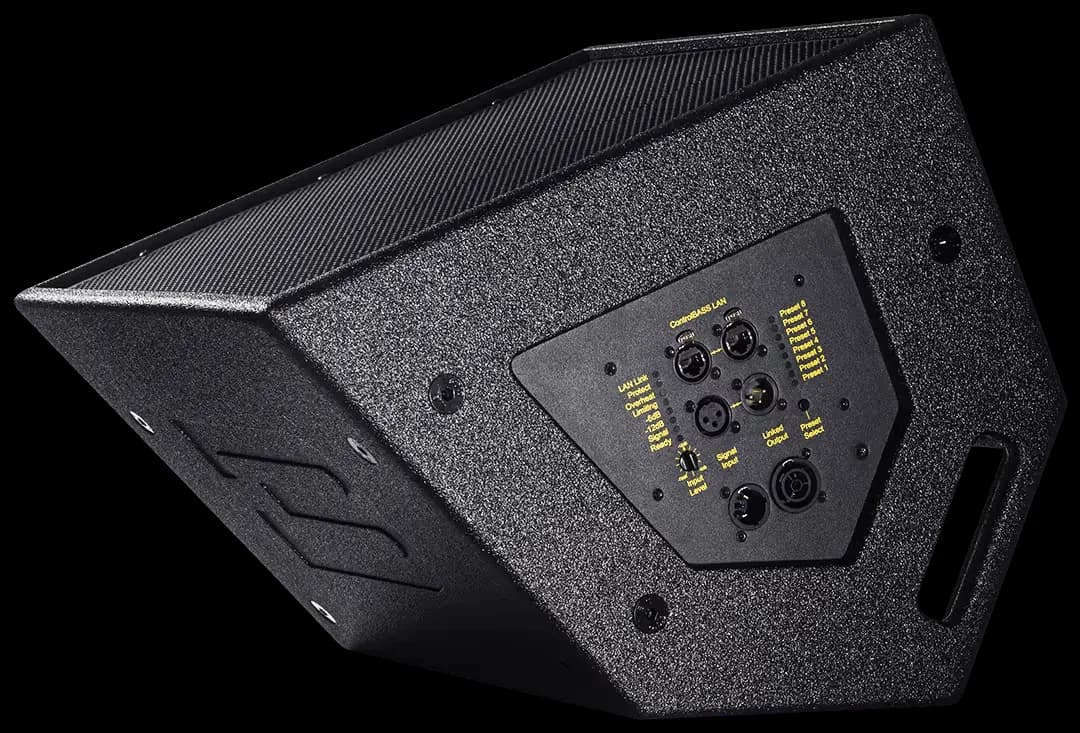

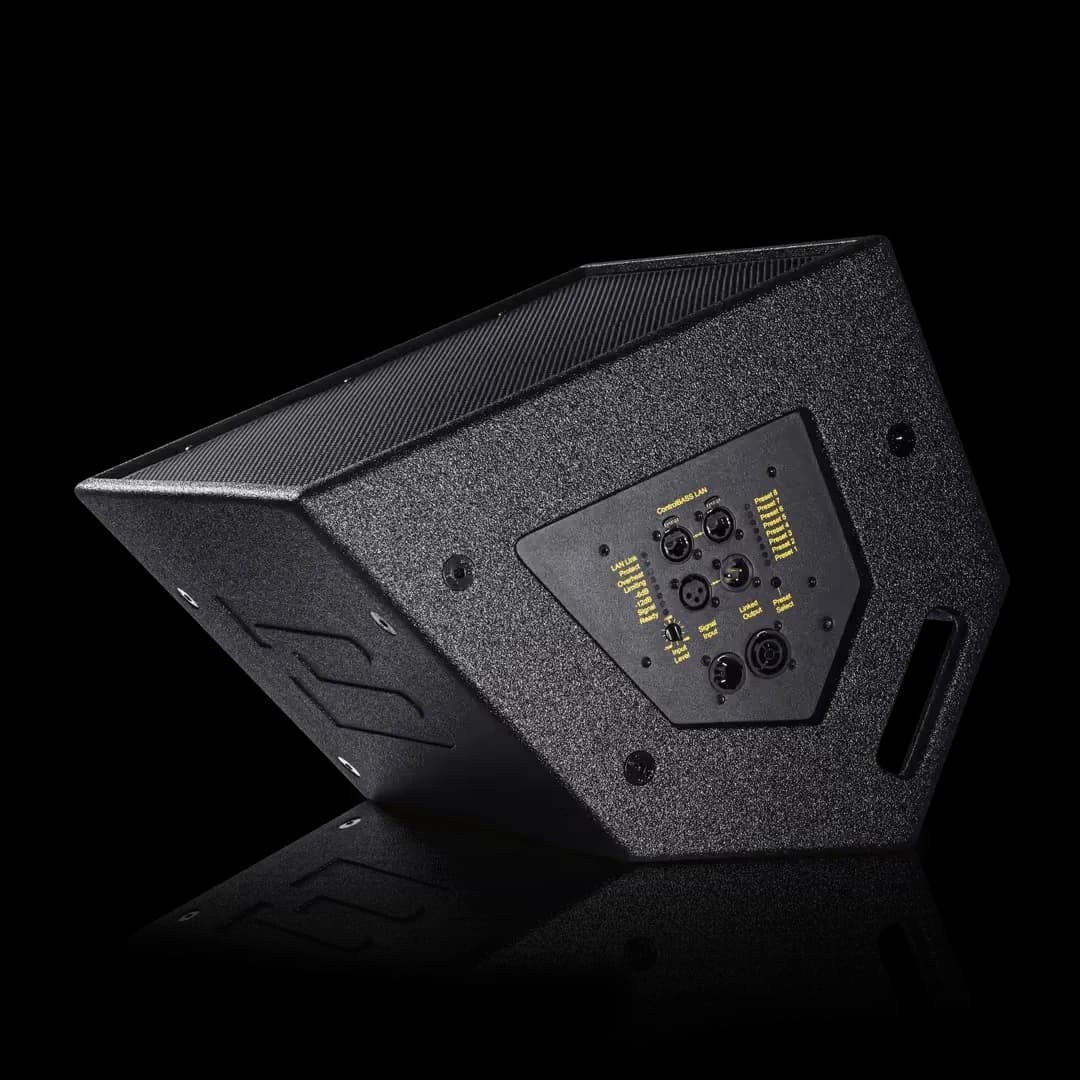

CCM12-MK3
Single 12″ Powered Monitor
1200W
Class D Amplifier
123dB
Sustained Output
80°
Conical coverage
30lbs
Net weight
Sweet + Silky
For performers, a dream to play. For engineers, a breeze to work with. For venues, gorgeous sound and a tiny footprint. The CCM12-MK3 delivers full-range clarity and musical warmth, whether it's floor monitoring, front-fill, or on a pole beside a sub.
Very Very Versatile
Designed to meet the needs of discerning vocalists, instrumentalists, and venues that demand exceptional versatility. Use it as a stage monitor, a pole-mounted top, a side-fill, or mounted on the wall. It handles them all with equal confidence.
Petite + Punchy
Half the size, twice the output of typical monitors. Tired of big, bulky, ugly stage wedges? Us too. The CCM12-MK3 packs a 12″ neodymium woofer and 3″ compression driver into a cabinet you can carry with one hand, and it punches well above its weight.
A form factor that disappears.
At 14″ × 14″ × 11″ and just 30 lbs, the CCM12-MK3 fits where other monitors don't. The co-axial driver design of a 3″ compression driver through the center of the 12″ woofer means both HF and LF come from a single point, eliminating the comb filtering that plagues traditional 2-way designs at close listening distances. Perfect imaging on stage.
Eight presets. Zero guesswork.
The MK3's 96 kHz DSP ships 8 pushbutton presets tuned for every scenario: full-range monitoring, mid-high sub top, side-fill, front-fill, and more. Store up to 100 custom presets via ControlBASS software. Phase alignment, EQ, and multi-stage limiting are baked in, so it sounds right the moment you plug it in.
Built weatherproof, built to last.
Birch plywood enclosure bonded in high-pressure polyurea: waterproof and rugged. IP65-rated Neutrik powerCON connectors front and back. Perforated powder-coated steel grille with hydrophobic cloth liner behind it. The CCM12-MK3 can survive an outdoor festival and still look clean enough for a corporate ballroom the next day.
You've got the
right angle.
CCM12-MK3 Single 12″ Powered Monitor full product walkthrough.
Diving Deep with the Fam.
Brendon Grimes
Brendon Grimes
TSC Productions recently completed the Audio installation at AJ’s Seafood and Oyster Bar in Destin Florida. We selected BASSBOSS for this project due to the demanding system requirements. We love the system.
Jakes Srinivasan
Jakes Srinivasan
When it comes to high end professional audio products, it is obvious how much care and thought was put into each cabinet – the high performance drivers, the construction of the cabinet, the super powerful amps, and the carefully tuned DSP software.
Jason Jenkins
Jason Jenkins
Kingdom Austin has a legendary BASSBOSS sound system. I always look forward to any DJ gig but playing on that BASSBOSS sound sure does create some magic. Thanks, Kingdom, for recognizing and providing superior sound quality in a nightclub! Let’s dance!
Keanu Escobar
Keanu Escobar
I love the look and size of the BASSBOSS CCMs. I own a pair just for the booth.
The All New
ControlBASS
With ControlBASS, any laptop becomes a full system controller over standard Ethernet. Monitor, tune, and recall presets, without touching a cabinet. Free for macOS and Windows.
Coming soon: an all-new GUI and 15 onboard provided presets, with the ability to save 85 more custom presets.
The All New
ControlBASS
With ControlBASS, any laptop becomes a full system controller over standard Ethernet. Monitor, tune, and recall presets, without touching a cabinet. Free for macOS and Windows.
Coming soon: an all-new GUI and 15 onboard provided presets, with the ability to save 85 more custom presets.
→
Real-time remote control
Adjust gain, EQ, and delay without touching a cab.
→
Live system monitoring
Track levels, temperatures, and gain reduction across every unit.
→
100 stored presets
Now with up to 15 on-board presets, accessible from the amp.
Specs
+ Resources
Acoustical
| Loudspeaker Type | 2-Way Active 12″ Co-Axial Powered Monitor |
| Frequency Response | 50–19,000 Hz (±3 dB) |
| Max Sustained SPL | 123 dB @ 1m half-space |
| Peak SPL | 126 dB @ 1m half-space |
| Dispersion | 80° × 80° Conical |
| Transducer LF | 1 × 12″ (300mm) neodymium woofer · 3″ (76mm) copper voice coil |
| Transducer HF | 3″ (76mm) diaphragm compression driver · 1.4″ throat · 80° conical horn |
Amplifier / DSP
| Amplifier | 1,200W Class D (2-channel) |
| DSP | 96 kHz: 8 pushbutton presets, 100 storage via ControlBASS |
| Voltage | 100–240V AC, 50–60 Hz (auto-sensing) |
| Current Draw | 1.4A @ 120V / 0.7A @ 240V (nominal) |
| Protection | Soft-clip limiting, thermal, short-circuit, DC offset |
Connections
| Signal Input | XLR-F balanced |
| Signal Output | XLR-M balanced (pass-through only) |
| Power In | Neutrik powerCON True 1 TOP (IP65) · 15A / 1800W max inlet |
| Power Out | Neutrik powerCON True 1 · 10A / 1200W max outlet |
| Mains Plug | NEMA 5-15 (Edison) standard 3-pin grounded |
| Max Cable Run | 100m per AVB segment |
| DSP Control | ControlBASS software (macOS / Windows) |
Physical
| Enclosure | Birch plywood · dado joinery · 35mm pole socket |
| Finish | Black weatherproof bonded high-pressure polyurea |
| Grille | Perforated, powder-coated steel with hydrophobic cloth liner |
| Dimensions (H×W×D) | 14″ × 14″ × 11″ (35.5 cm × 35.5 cm × 28 cm) |
| Net Weight | 30 lbs (13.5 kg) |
| Shipping Weight | 35 lbs (16 kg) |
Top Line.
See how the CCM12-MK3 compares to the rest of the BASSBOSS mid-high product line.
SV9-MK3
Single 9" powered top
- LF50 – 19,000Hz
- SPL121 dB
- AMP1,200 W
- DRVSingle 9″
This Model
CCM12-MK3
Single 12" powered stage monitor
- LF50Hz - 19kHz
- SPL126 dB
- AMP1,200 W
- DRVSingle 12″
DiaMon-MK3
Single 12" powered top
- LF50Hz - 19kHz
- SPL126 dB
- AMP1,200 W
- DRVSingle 12″
DV12-MK3
Single 12" powered top
- LF45 – 19,000Hz
- SPL134 dB
- AMP3,200 W
- DRVSingle 12″
Attuned12
Single 12" powered loudspeaker
- LF65 – 19,000 Hz
- SPL136 dB
- AMP3,200 W
- DRVSingle 12″
AT212-MK3
Dual 12" powered top
- LF50 – 18,000Hz
- SPL142 dB
- AMP3,200 W
- DRVDual 12″
AT312-MK3
Triple 12" powered top
- LF60 – 19,000Hz
- SPL139 dB
- AMP4,000 W
- DRVDual 12″
MFLA-MK3
Dual 12" powered line array
- LF60 – 18,000Hz
- SPL142 dB
- AMP3,200 W
- DRVDual 12″
Krakatoa
Quintuple 18" powered point source
- LF25 - 19,000Hz
- SPL145 dB
- AMP7,500 W
- DRVQuad 18″
8 presets.
Instant recall.
Factory-tuned for every deployment. Each preset switches in real time with no dropout. Up to 100 stored over the network.
- →Hover to read exact Hz and dB values
- →Up to 100 stored presets via ControlBASS
- →Special presets for stacked / cardioid use
PRESET 01
Up Stnd 60BW
60 Hz HPF (Butterworth)
01
02
03
04
05
06
07
08
8 presets.
Instant recall.
Factory-tuned for every deployment. Click a preset and the curve updates in real time. Hover to read exact Hz and dB values.
PRESET 01
Up Stnd 60BW
60 Hz HPF (Butterworth)
60Hz HPF
CB
Up to 100 stored presets via ControlBASS
Manage, name, and recall: all over Ethernet.
Select a preset
Preset 08: Cardioid Mode
Eliminate
stage bleed.
Cardioid Mode turns two stacked ZV28s into a directional low-frequency system. The DSP handles delay and polarity automatically. The rear lobe cancels itself out.
01
Position two subs
One forward-facing, one rear-facing directly behind it.
02
Select preset 8
One-touch activation: DSP handles delay and polarity.
03
Rear null engaged
Stage stays clean. FOH gets all the power.
One top.
HOW many subs!?
Click any sub to see how many of them a single CCM12-MK3 can keep up with. Numbers are conservative; in practice the top usually has more headroom.
BB15-MK3
Single 15″
At least 2× eachDetails →
SSP118-MK3
Single 18″
At least 2× eachDetails →
DJ18S-MK3
Single 18″ mobile
At least 2× eachDetails →
VS21-MK3
Single 21″
At least 1× eachDetails →
SSP215-MK3
Dual 15″
At least 1× eachDetails →
SSP218-MK3
Dual 18″ slim
At least 1× eachDetails →
ZV28-MK3
Dual 18″
At least 1× eachDetails →
Not Recommended
Makara-MK3
Dual 21″
Too small for an array
Not Recommended
Kraken-MK3
Quad 21″
Too small for an array
Popular
Systems.
The CCM12-MK3 in complete systems: subs and tops, dialed in and ready to go.
DJ System

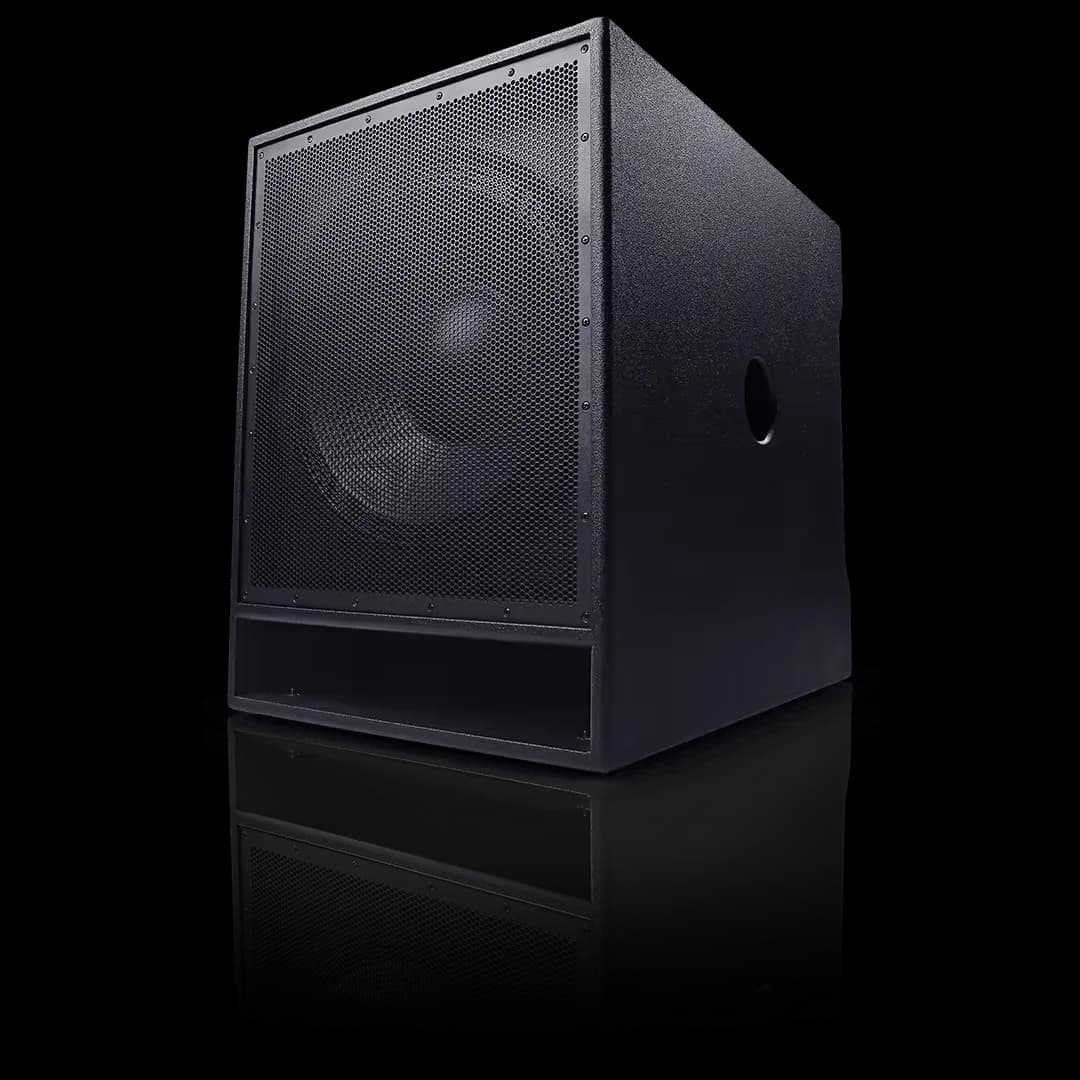

DJ18S-MK3
Single 18″ DJ subwoofer
Built for DJ rigs, the DJ18S-MK3 pairs with the CCM12-MK3 for a compact, purpose-built dance floor system with serious low-end impact.
View DJ18S-MK3 →
Full System Sub

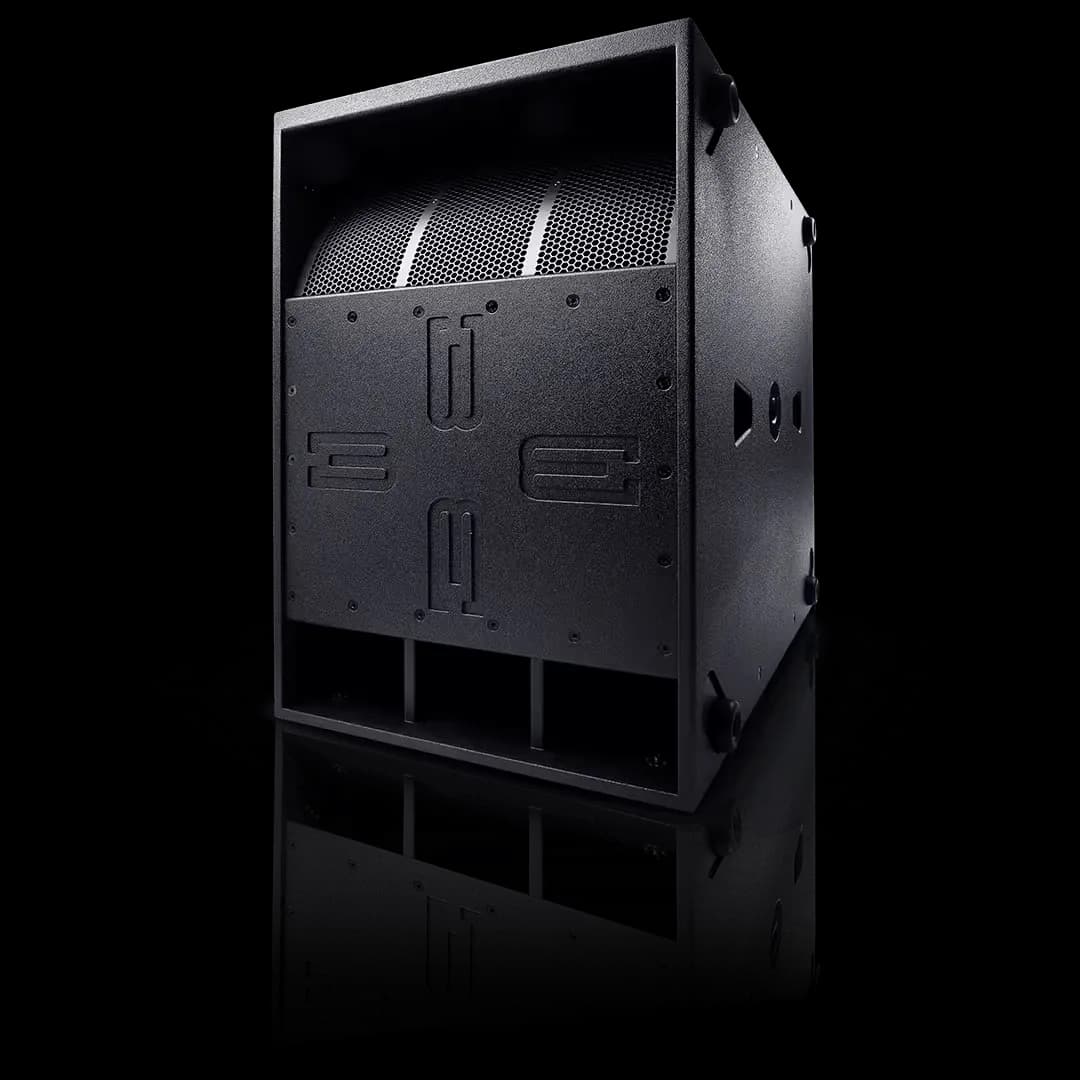

VS21-MK3
Single 21″ powered subwoofer
Pole the CCM12-MK3 on top of the VS21-MK3 for a compact, full-range system with serious low-end extension.
View VS21-MK3 →
Compact Pair

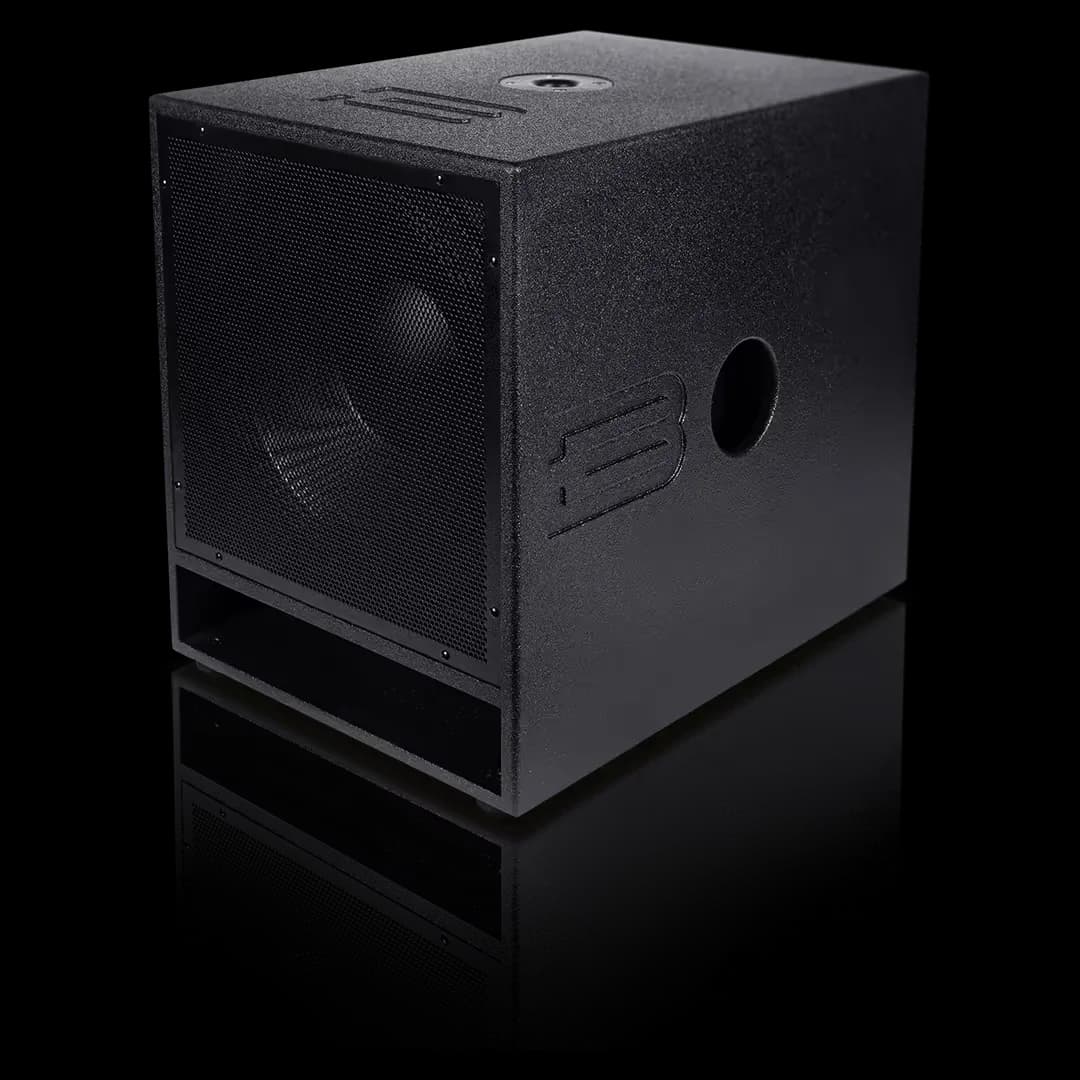

BB15-MK3
Single 15″ powered subwoofer
The lightest full-range combination in the BASSBOSS lineup. Perfect for intimate events, ceremony audio, or background music installs.
View BB15-MK3 →
Plan Your System.
Design your ideal system with our self-serve tools.
Prefer to work with an expert?
Let's talk gear. →Get
Loud.
CCM12-MK3
Single 12″ Powered Monitor
- 1200 W Class D Amplifier
- 123 dB Sustained Output
- 80 ° Conical coverage
- 30 lbs Net weight
Retail
$2,295USD
Finance It
Lease-to-own lets you expand your business now.
Apply Now →Through Synchrony & Hampton Ridge Financial
US + Worldwide Shipping
BASSBOSS products are shipped via palletized freight to a local freight terminal or right to your door.
Warranty & Support
The BASSBOSS Sound Defense warranty offers the peace of mind of knowing you're covered.
Submit a service request →Parts + labor
guaranteed.
3
Year Warranty
Parts and labor. No fine print.
Every BASSBOSS product ships with Sound Defense 3-year comprehensive warranty for parts and labor. Failed under normal use? We got you.
∞
Firmware Updates
Your system gets better + better.
ControlBASS firmware updates are free, forever. Performance improvements, new features, and expanded preset libraries, as they happen.
Expert Support
We get it! We've done this gig.
Our support team includes working engineers. They know the product because they've run it. Phone, email or chat, we're here to help.
