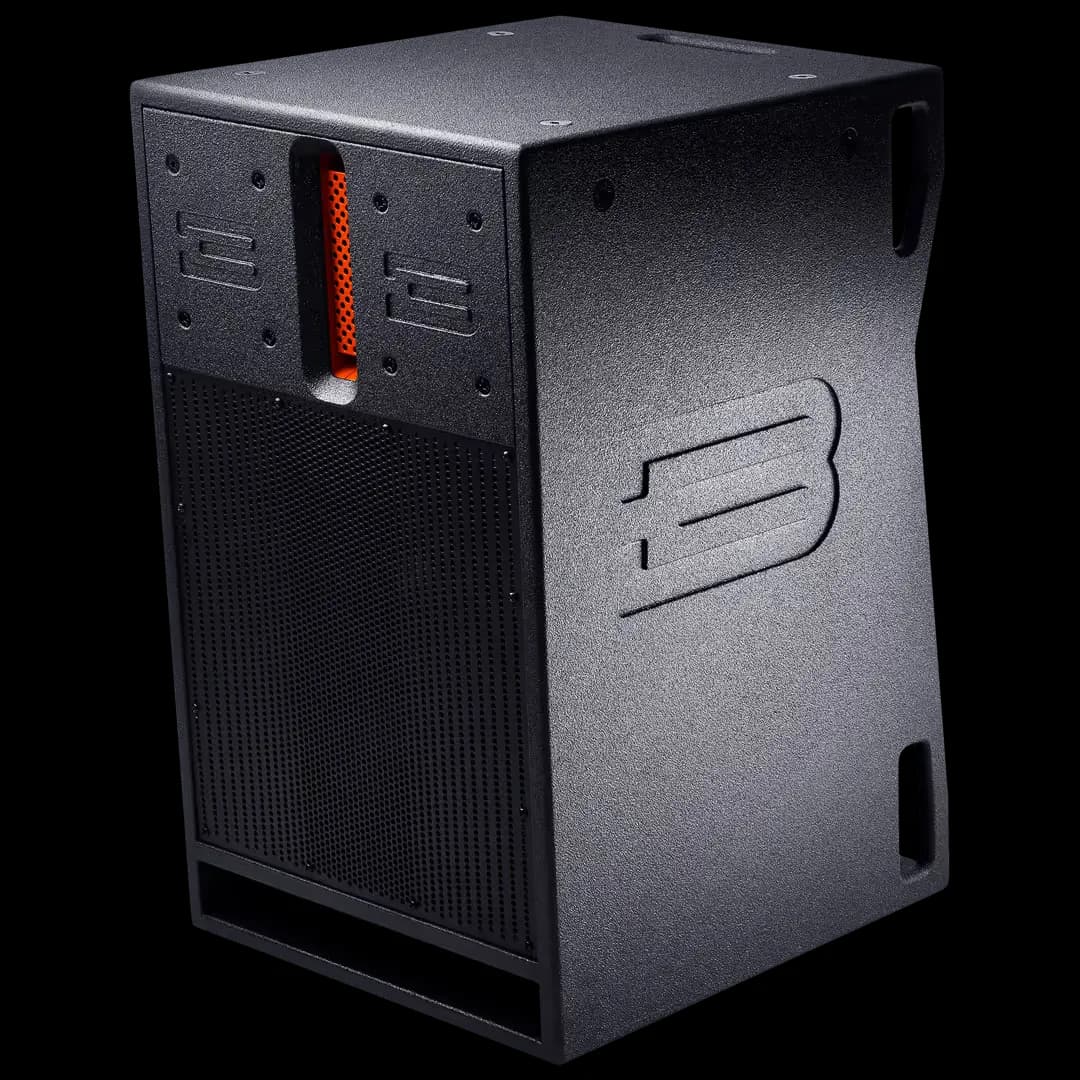

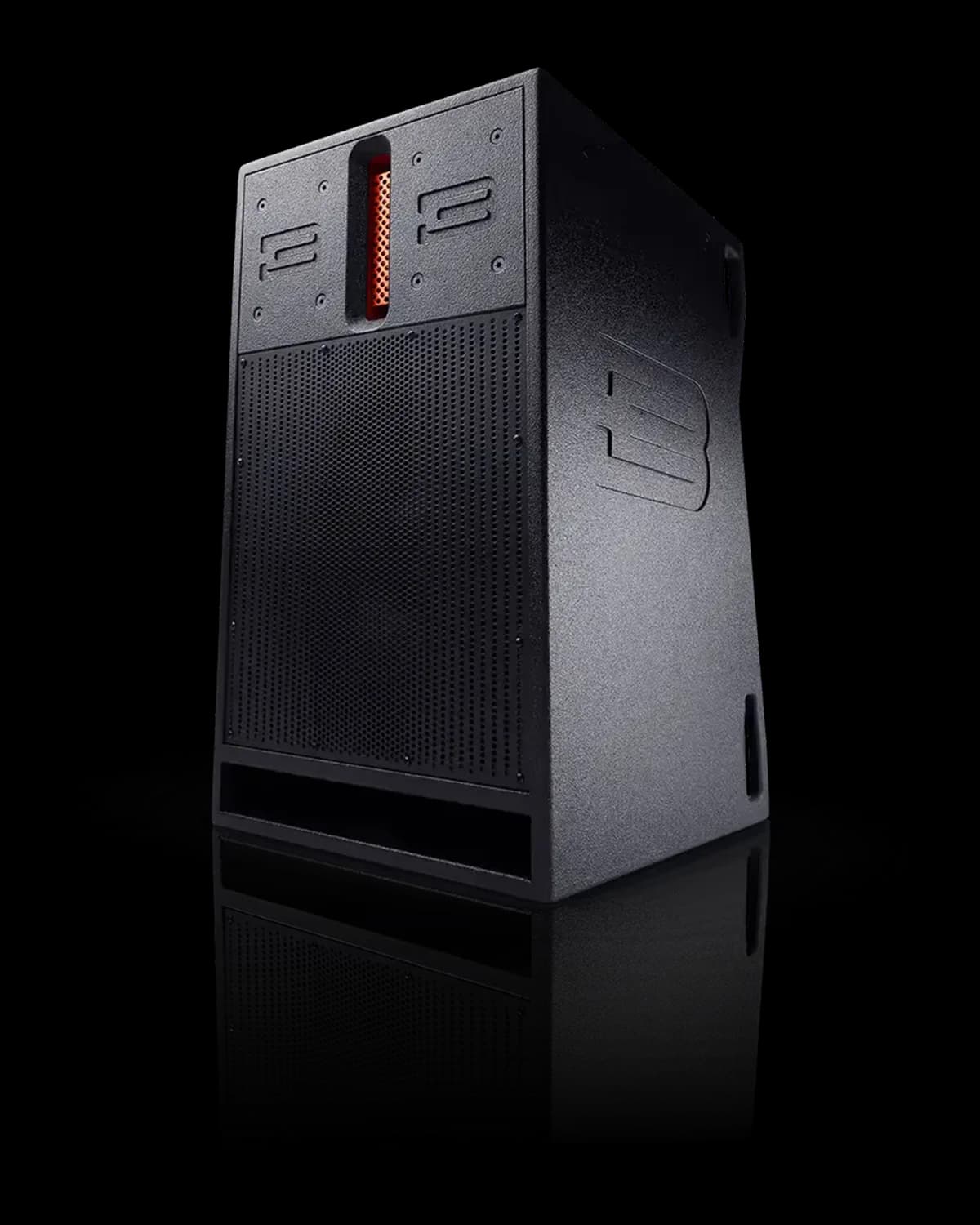

DV12-MK3
Single 12″ Powered Top
3200W
Class D Amplifier
128dB
Sustained Output
45Hz
Low extension
120°
Horizontal coverage
The game changer.
Fulfilling Full-Range
Legendary output and clarity with full-range performance that will make audiences think you brought a sub. Extremely wide coverage delivers clean, loud, and full sound over the whole room.
Makes It All Good
Your reputation is valuable. Your time is valuable. You need a speaker that's flawless for every gig. If you need to cover the largest number of people with the smallest number of boxes, you're looking at the right loudspeaker.
Get High, Go Low
Every feature of the DV12-MK3 serves to deliver the ideal performance in its intended role: on a pole, wide horizontal for wide rooms, tight vertical for intelligibility at distance. Plenty of power for any level: plug-and-play processing handles the rest.
Built for the long haul.
CNC-machined 15mm Birch plywood with full internal bracing and dado joinery, bonded in high-pressure polyurea: waterproof, rugged, textured black. Eight M10 fly points and a 35mm steel pole socket give you mounting options for any venue. Powder-coated perforated steel grille. This cabinet is built to survive touring, not just weekend gigs.
Smart enough to run itself.
The MK3's 96 kHz DSP doubles the pushbutton presets to 8, and stores up to 100 via ControlBASS software. Every preset ships with meticulously tuned EQ, high-pass and low-pass filters, phase alignment, and multi-stage limiting. Firmware updates are loaded remotely: your speaker gets smarter without touching a cab.
Power where the crowd feels it.
A 2,400W Class D channel drives a 12″ neodymium woofer with a 4″ voice coil: high efficiency, extended low-end reach. An 800W channel powers a 3″ diaphragm compression driver on an isophasic waveguide for clean, controlled highs. The MK3 amp update delivers higher output voltages for more impact and universal voltage compatibility for international touring.
Mobile Memory Maker.
DV12-MK3 Single 12″ Powered Top product walkthrough.
DV12. Attuned12. AT212.
Three high-output BASSBOSS tops. One is the loudest. One emulates a sub. One is the most rigging-flexible, and the only one in white. Here's how to pick.
You are here
DV12-MK3
The 12" top with true full-range power.
$3,495 MAP
Best at
Halls, ballrooms, outdoor events. Expandable, full-range, long-throw, wide coverage, starting from a pole or tripod.
- Config
- 2-way single 12″
- Horn
- Line-array optimized wave guide, 120 degrees horizontal
- Fly pts
- None. 8x M10 points provided for linking pairs
- Arrays

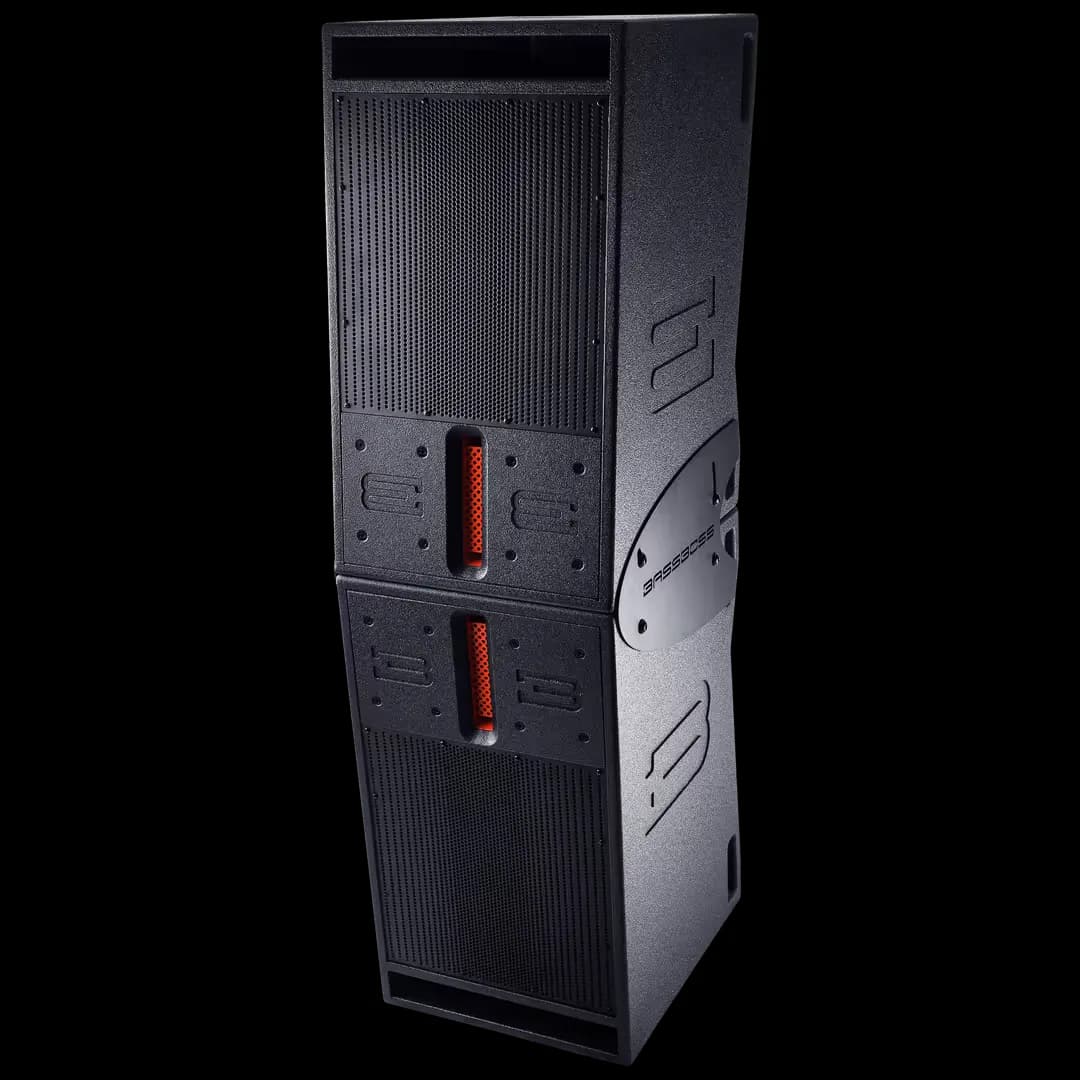

- Vertically only, Maximum of 2, upper box inverted
- Weight
- 63 lbs
Advantages
- +Best coverage of large, flat areas from a pole or tripod
- +Amazing full-range response from a small cabinet
- +Increased SPL capacity when used with subwoofers
- +Perfect summation when vertically arrayed
- +Can outperform a small line-array when vertically arrayed
- +Downward angle is integrated into the cabinet
Currently viewing

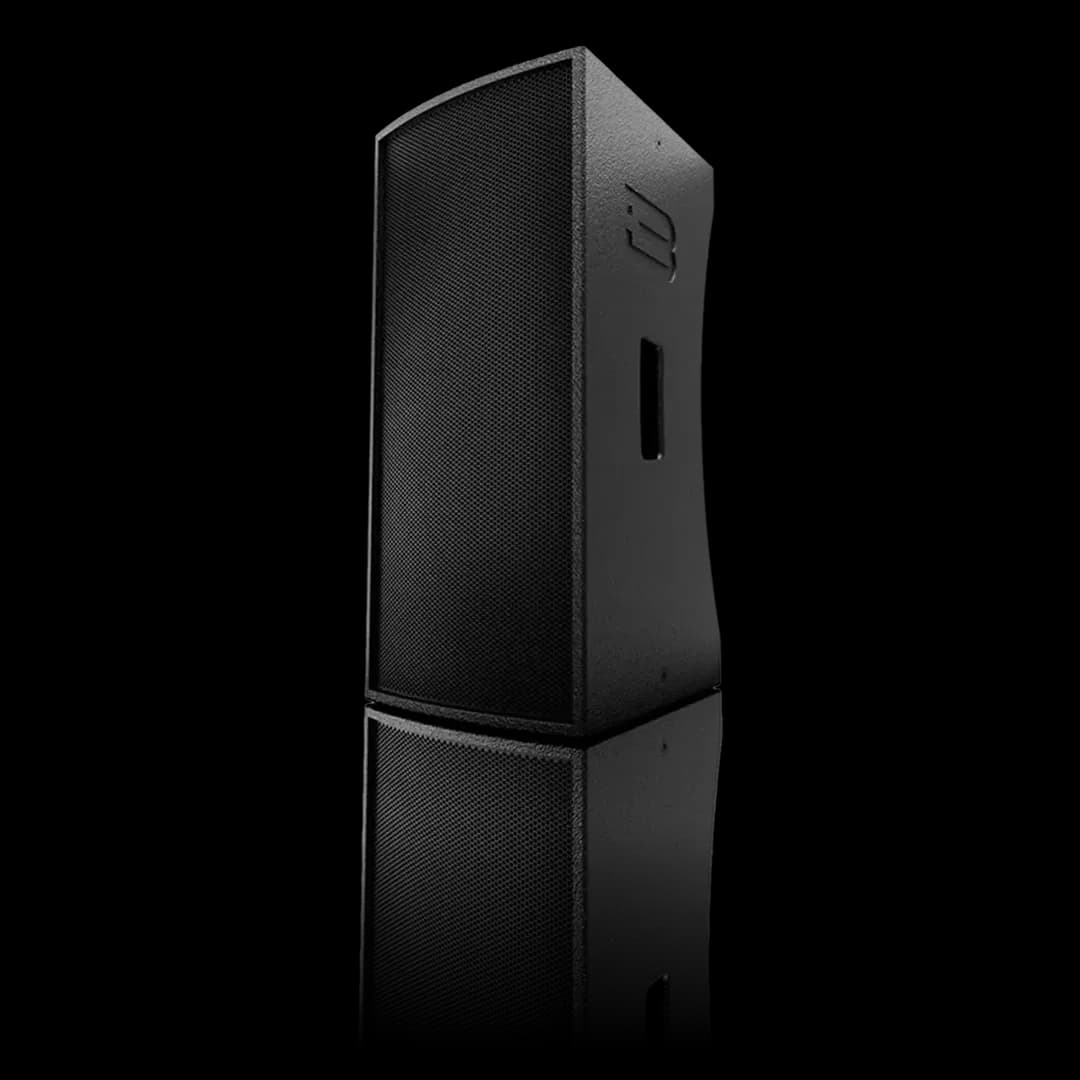

Attuned12
The newest member of the Attuned Series.
$3,995 MAP
Best at
Versatility. Pole-mounted it's light, loud and looking good. It's easily installed, sleek and acoustically unbeatable.
- Config
- 2-way single 12″
- Horn
- 90° × 60° rotatable FEM optimized constant directivity
- Fly pts
- 12x M10 (4 top, 4 bottom, 4 sides)
- Arrays
- Horizontally, 3 boxes recommended
- Weight
- 55 lbs
Advantages
- +Easier to lift and easier to load
- +Less weight AND more SPL above your subwoofers
- +Sleek, elegant styling pleases as many eyes as ears
- +Vertical versatility to get speakers up and out of sight
- +Easy to fly when you need to get speakers in the air.
- +Horizontal deployment option, with rotatable HF horn
- +Coverage suitable for near-field (DJ monitor) use
View Attuned12 →

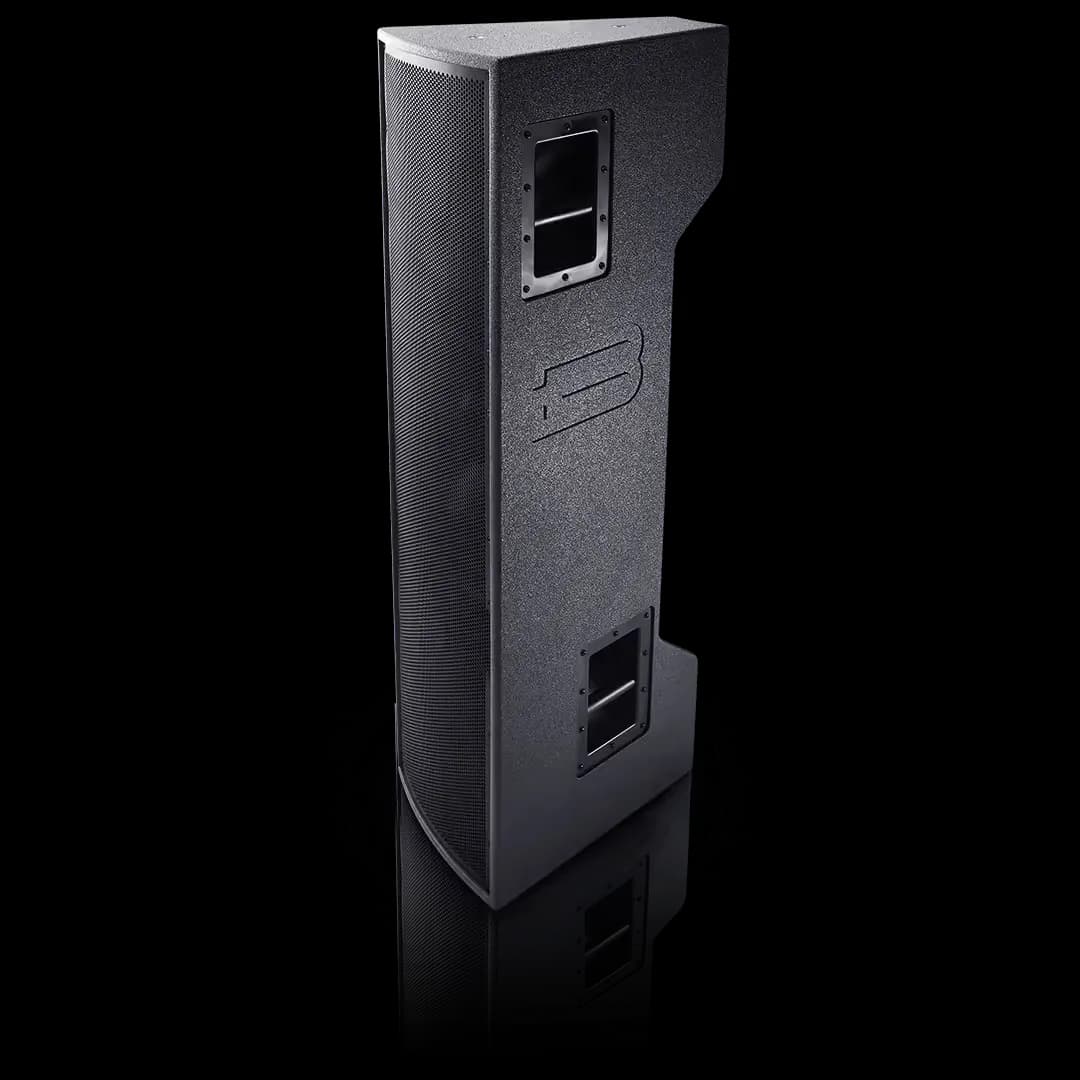

AT212-MK3
Dual 12″ workhorse. Loudest of the three.
$4,995 MAP
Best at
Melting faces in Big Spaces. Rapid Deployment of Rippin' Rigs for Real Road Warriors.
- Config
- 2-way dual 12″
- Horn
- 80° × 60° rotatable constant directivity
- Fly pts
- 4 × M10
- Arrays
- Horizontally, 3 boxes recommended
- Weight
- 99 lbs
Advantages
- +Output sufficient to rarely need more than 1 per side
- +Piggybacks perfectly on SSP218, Makara and Kraken
- +Transport tops on subs and tilt into position.
- +Roll in. Rotate up. Rock out. Rotate down. Roll out.
- +48″ cabs deploys to useful height when directly on subs
- +No extension poles. No tripods. No wobbles. No worries.
- +Incredibly high SPL from less than 100 lbs
- +99lbs is light enough to fly from almost anything…
View AT212-MK3 →
Diving Deep with the Fam.
Jeze Funk
Jeze Funk
Two minutes later the chef runs into the ballroom freaking out because $500 worth of plates fell off the walls in the kitchen which was on the other side of the wall behind our setup. VS21’s under those DV12s. Can’t make this sh!!? up!!
Bob Fleischmann
Bob Fleischmann

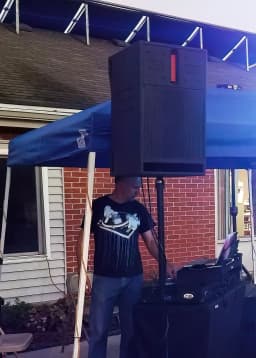

I am always getting compliments for the sound quality at parades and car shows. The sound carries for several blocks... The bass you hear (and feel) in front of the port is the same bass you experience a block-and-a-half away! No other speaker has that much fidelity at that distance - none. BASSBOSS for the win at these events!
Chris Harding
Chris Harding
I think this video says it all, but I'll elaborate below anyways Got nonstop compliments about how clear and full it sounded. For the band, we were just barely tickling the limiter on the DV12 at the loudest sections. I kept asking the client if it was too loud, and they continuously told me "hell no! This is amazing!". Pushing 96db a-weighted at FOH, but no pain. The stock tuning on these is immaculate. Client commented afterwards that this was the clearest they've ever heard a vocal, and I've provided PA for them numerous times in the past. They could hear the difference, and frankly, I agree with them.
Gerald Franks
Gerald Franks
I bought 2 SSP118s a year or two ago and finally gave in and bought the DV12s. The tops sound great! Hard to describe the difference but there’s no comparison between the brands. The BASSBOSS tops and subs are just so much more powerful. Best sound purchases I’ve ever made.
The All New
ControlBASS
With ControlBASS, any laptop becomes a full system controller over standard Ethernet. Monitor, tune, and recall presets, without touching a cabinet. Free for macOS and Windows.
Coming soon: an all-new GUI and 15 onboard provided presets, with the ability to save 85 more custom presets.
The All New
ControlBASS
With ControlBASS, any laptop becomes a full system controller over standard Ethernet. Monitor, tune, and recall presets, without touching a cabinet. Free for macOS and Windows.
Coming soon: an all-new GUI and 15 onboard provided presets, with the ability to save 85 more custom presets.
→
Real-time remote control
Adjust gain, EQ, and delay without touching a cab.
→
Live system monitoring
Track levels, temperatures, and gain reduction across every unit.
→
100 stored presets
Now with up to 15 on-board presets, accessible from the amp.
Getting Deep
Take It Anywhere.
Specs
+ Resources
Acoustical
| Loudspeaker Type | 2-Way Active, Self-Powered, Vented, Direct-Radiating Full-Range |
| Frequency Response | 45–19,000 Hz (±3 dB) |
| Max Sustained SPL | 128 dB @ 1m half-space |
| Peak SPL | 134 dB @ 1m half-space |
| Dispersion | 120° × 20° |
| Transducer LF | 1 × 12″ (300mm) neodymium woofer · 4″ (100mm) voice coil |
| Transducer HF | 1 × 3″ (76mm) diaphragm compression driver · 1.4″ exit · isophasic wave guide |
Amplifier / DSP
| Amplifier | 3,200W Class D (2400W LF + 800W HF) |
| DSP | 96 kHz: 8 pushbutton presets, 100 storage via ControlBASS |
| Voltage | 100–240V AC, 50–60 Hz (auto-sensing) |
| Current Draw | 4.6A @ 120V / 2.3A @ 240V (nominal) |
| Protection | Soft-clip limiting, thermal, short-circuit, DC offset |
Connections
| Signal Input | XLR-F balanced |
| Signal Output | XLR-M balanced (direct pass-through only) |
| Power In | Neutrik powerCON True 1 TOP (IP65) · 15A / 1800W max inlet |
| Power Out | Neutrik powerCON True 1 · 10A / 1200W max outlet |
| Mains Plug | NEMA 5-15 (Edison) standard 3-pin grounded |
| Max Cable Run | 100m per AVB segment |
| DSP Control | ControlBASS software (macOS / Windows) |
Physical
| Enclosure | CNC-machined 15mm Birch plywood · dado joinery · internal bracing |
| Fly System | 8 × M10 fly points |
| Pole Mount | 1 × 35mm steel pole socket |
| Finish | High-pressure bonded polyurea: waterproof, textured black |
| Grille | Perforated, powder-coated steel |
| Dimensions (H×W×D) | 24.63″ × 14.5″ × 19.1″ (62.6 cm × 36 cm × 48.5 cm) |
| Net Weight | 63 lbs (28 kg) |
| Shipping Weight | 74 lbs (33 kg) |
Compare Tops Line
See how the DV12-MK3 compares to the rest of the BASSBOSS mid-high product line.
SV9-MK3
Single 9" powered top
- LF50 – 19,000Hz
- SPL121 dB
- AMP1,200 W
- DRVSingle 9″
CCM12-MK3
Single 12" powered stage monitor
- LF50Hz - 19kHz
- SPL126 dB
- AMP1,200 W
- DRVSingle 12″
DiaMon-MK3
Single 12" powered top
- LF50Hz - 19kHz
- SPL126 dB
- AMP1,200 W
- DRVSingle 12″
This Model
Attuned12
Single 12" powered loudspeaker
- LF65 – 19,000 Hz
- SPL136 dB
- AMP3,200 W
- DRVSingle 12″
AT212-MK3
Dual 12" powered top
- LF50 – 18,000Hz
- SPL142 dB
- AMP3,200 W
- DRVDual 12″
AT312-MK3
Triple 12" powered top
- LF60 – 19,000Hz
- SPL139 dB
- AMP4,000 W
- DRVDual 12″
MFLA-MK3
Dual 12" powered line array
- LF60 – 18,000Hz
- SPL142 dB
- AMP3,200 W
- DRVDual 12″
Krakatoa
Quintuple 18" powered point source
- LF25 - 19,000Hz
- SPL145 dB
- AMP7,500 W
- DRVQuad 18″
8 presets.
Instant recall.
Manage, name, and recall, all over Ethernet.
- →Hover to read exact Hz and dB values
- →Up to 100 stored presets via ControlBASS
- →Special presets for stacked / cardioid use
PRESET 01
DV12 40BW HPF
40 Hz HPF (Butterworth)
01
02
03
04
05
06
07
08
8 presets.
Instant recall.
Factory-tuned for every deployment. Click a preset and the curve updates in real time. Hover to read exact Hz and dB values.
Learn how to use the presets →PRESET 01
DV12 40BW HPF
40 Hz HPF (Butterworth)
Butterworth DV12 40BW HPF
CB
Up to 100 stored presets via ControlBASS
Manage, name, and recall: all over Ethernet.
Select a preset
Preset 08: Cardioid Mode
Eliminate
stage bleed.
Cardioid Mode turns two stacked ZV28s into a directional low-frequency system. The DSP handles delay and polarity automatically. The rear lobe cancels itself out.
01
Position two subs
One forward-facing, one rear-facing directly behind it.
02
Select preset 8
One-touch activation: DSP handles delay and polarity.
03
Rear null engaged
Stage stays clean. FOH gets all the power.
One top.
HOW many subs!?
Click any sub to see how many of them a single DV12-MK3 can keep up with. Numbers are conservative; in practice the top usually has more headroom.
BB15-MK3
Single 15" powered subwoofer
1–6× eachDetails →
SSP118-MK3
Single 18" powered subwoofer
1–5× eachDetails →
DJ18S-MK3
Single 18" powered subwoofer
1–5× eachDetails →
SSP215-MK3
Dual 15" powered subwoofer
1–3× eachDetails →
SSP218-MK3
Dual 18" powered subwoofer
1–2× eachDetails →
ZV28-MK3
Dual 18" powered subwoofer
1–3× eachDetails →
VS21-MK3
Single 21" powered subwoofer
1–3× eachDetails →
Makara-MK3
Double 21" powered subwoofer
1–2× eachDetails →
Kraken-MK3
Quad 21" powered subwoofer
1× eachDetails →
Popular Systems.
The DV12-MK3 in complete systems: subs and tops, dialed in and ready to go.
Most Popular Sub

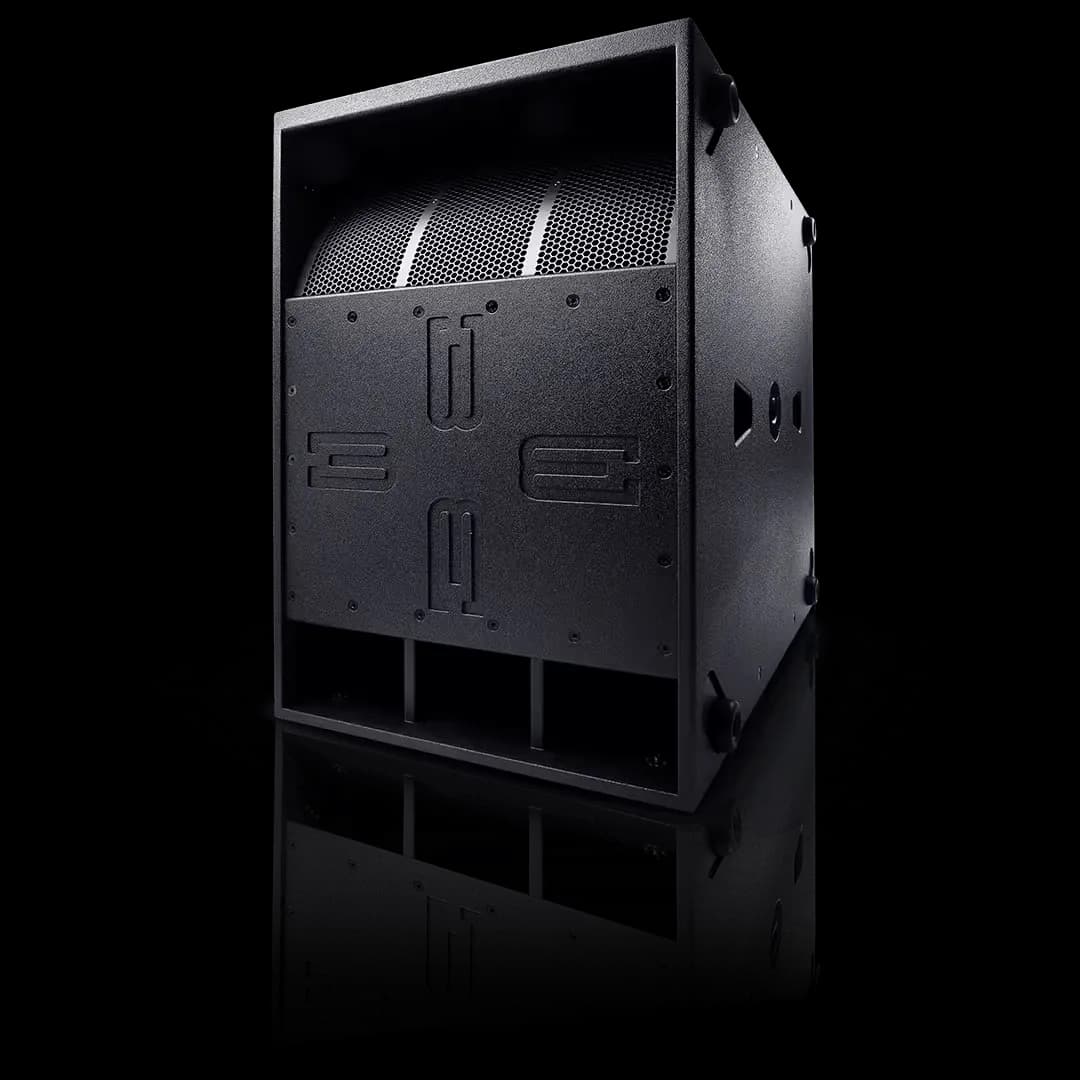

VS21-MK3
Single 21″ powered subwoofer
The most popular pairing for a reason. One VS21-MK3 beneath a pair of DV12s fills any dance floor with serious low end.
View VS21-MK3 →
Compact Sub

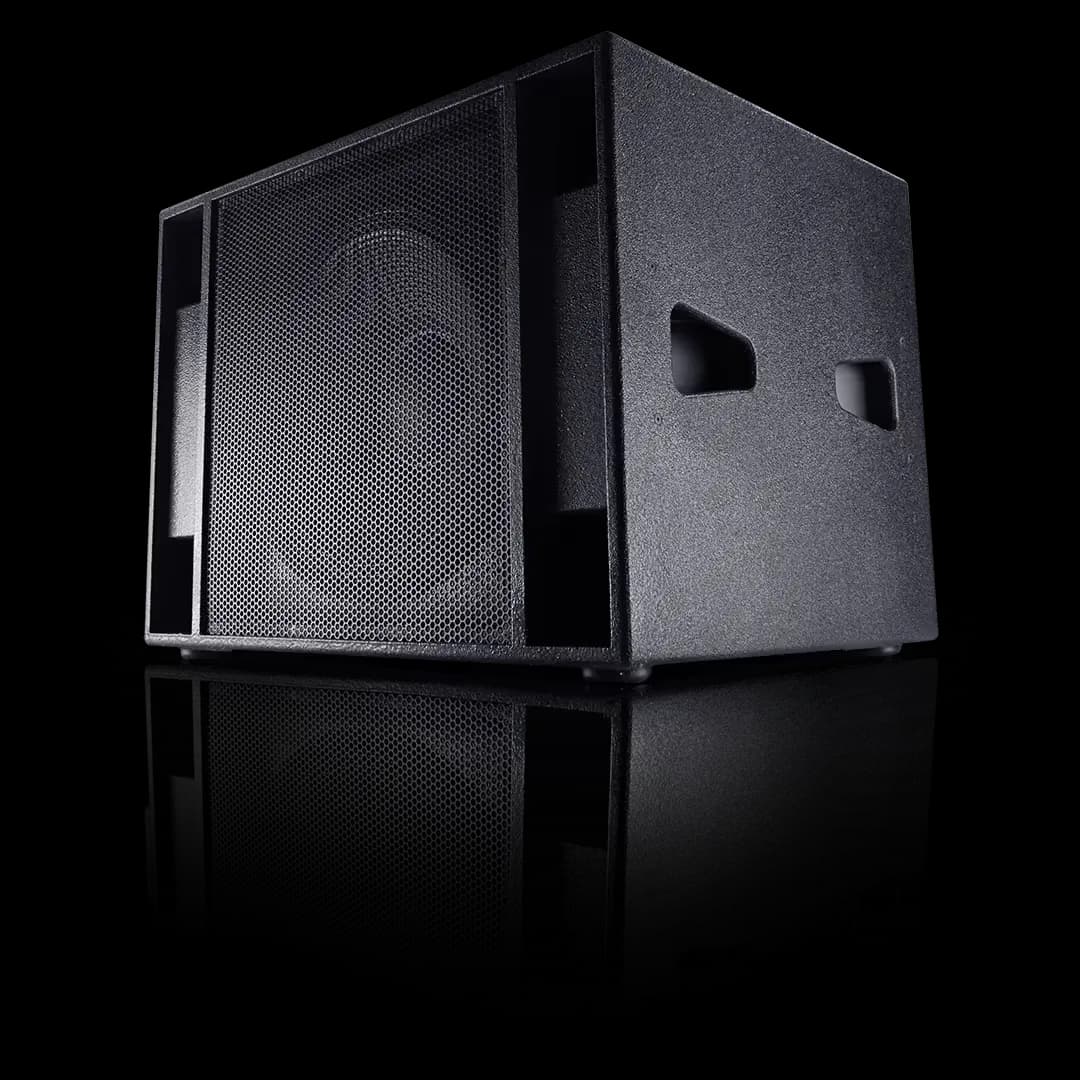

SSP118-MK3
Single 18″ powered subwoofer
When weight and portability matter, the SSP118 delivers punchy sub bass in the most compact footprint in the lineup.
View SSP118-MK3 →
Entry Sub

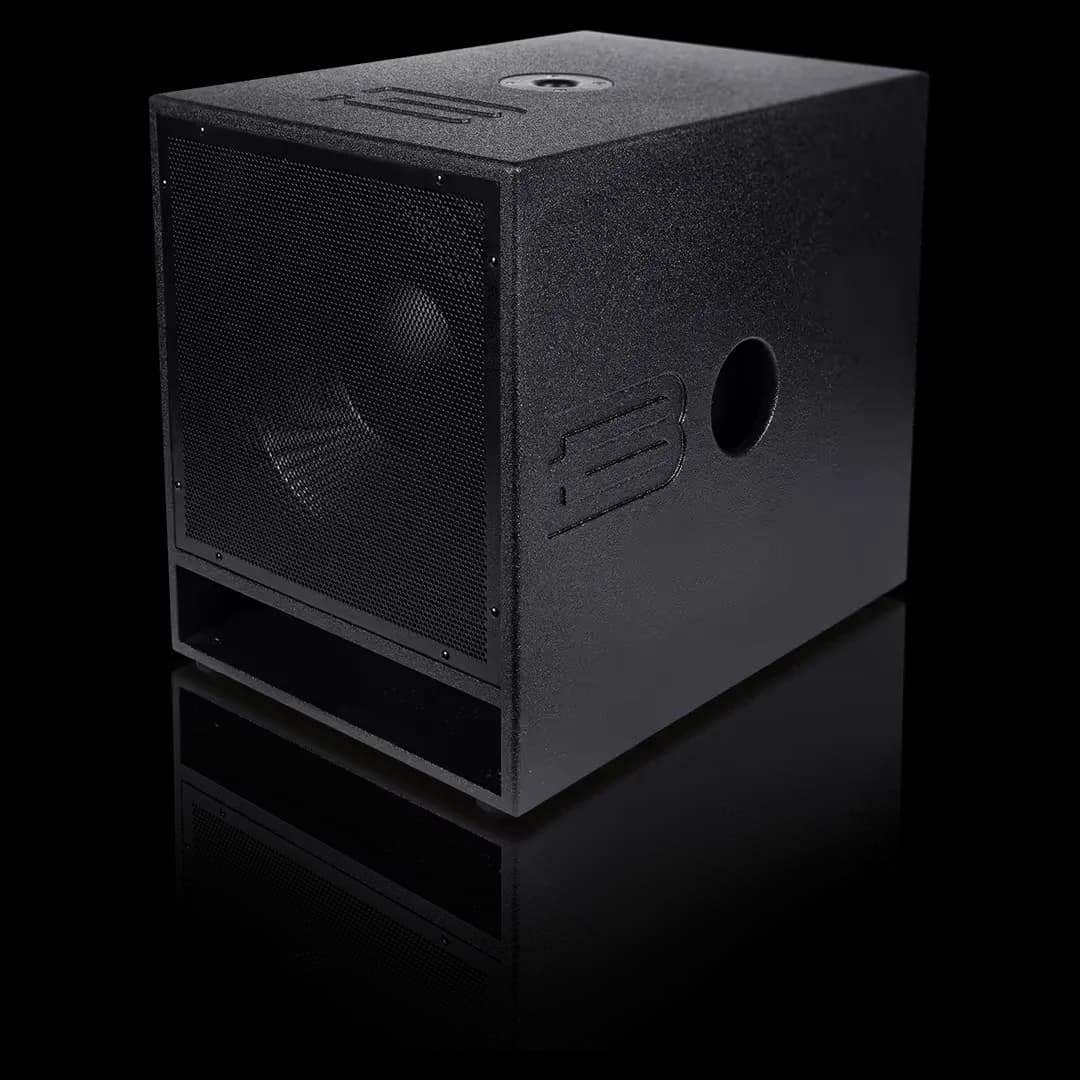

BB15-MK3
Single 15″ powered subwoofer
The most budget-friendly way to add BASSBOSS sub extension. Lightweight, reliable, and more than enough for smaller events.
View BB15-MK3 →
Plan Your System.
Design your ideal system with our self-serve tools.
Interactive chart
System Match
Frequency Range Overlap: see which products cover which ranges, and where a top and sub pair overlaps or leaves a gap.
Explore →
Sound education
SPL vs Distance
Sound drops with the inverse square law. See exactly how much level you lose at every distance from the source.
Explore →
Sound education
How Low Can You Go?
Play tones through your own speakers and sweep down to find where they tap out, then see what a BASSBOSS sub would add.
Explore →
System design
PredictBASS
Model bass coverage in any space before load-in. Drop in subs, see the dead zones, optimize placement.
Explore →
Prefer to work with an expert?
Let's talk gear. →Get
Loud.

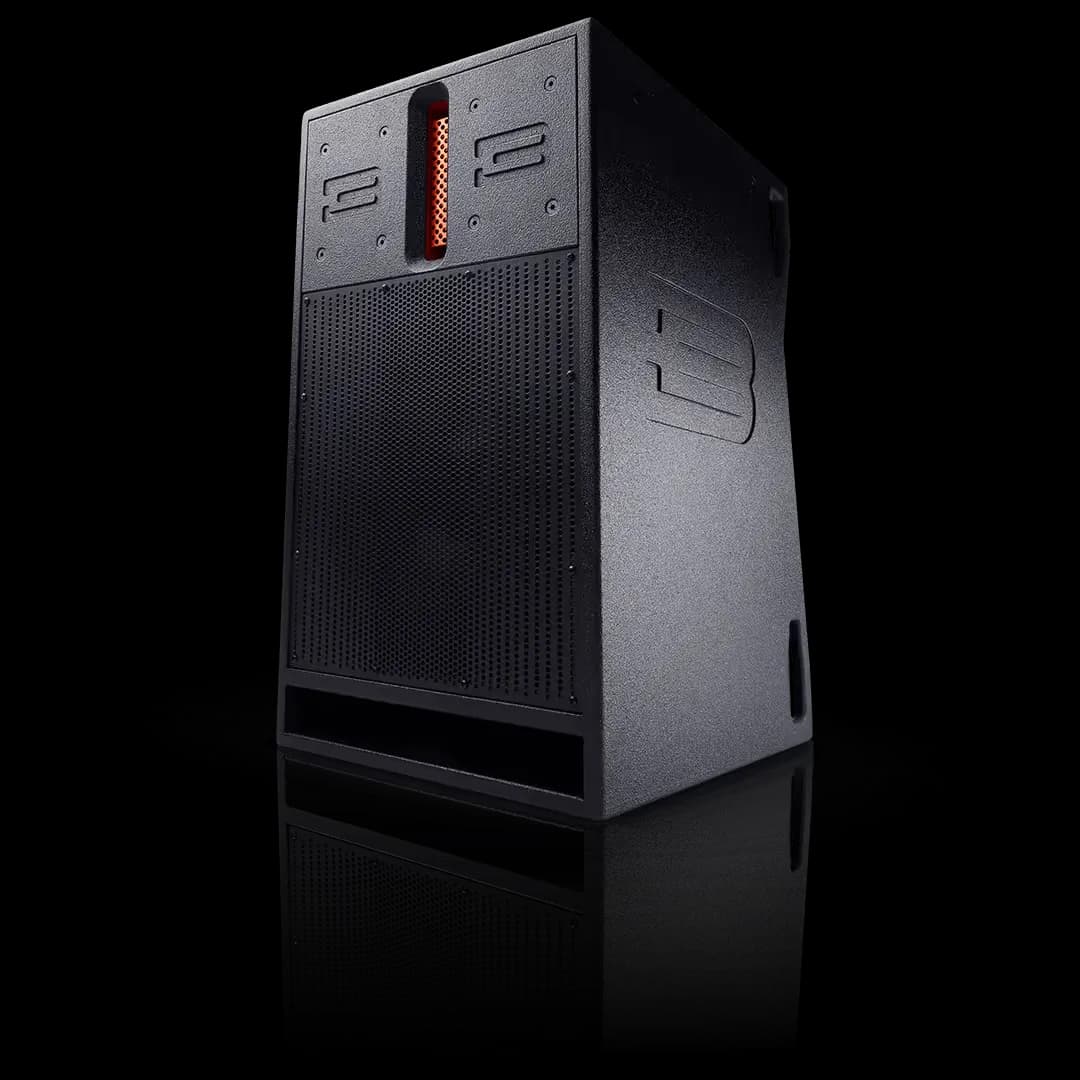

DV12-MK3
Single 12″ Powered Top
- 3200 W Class D Amplifier
- 128 dB Sustained Output
- 45 Hz Low extension
- 120 ° Horizontal coverage
Retail
$3,495USD
Outfit your rig.

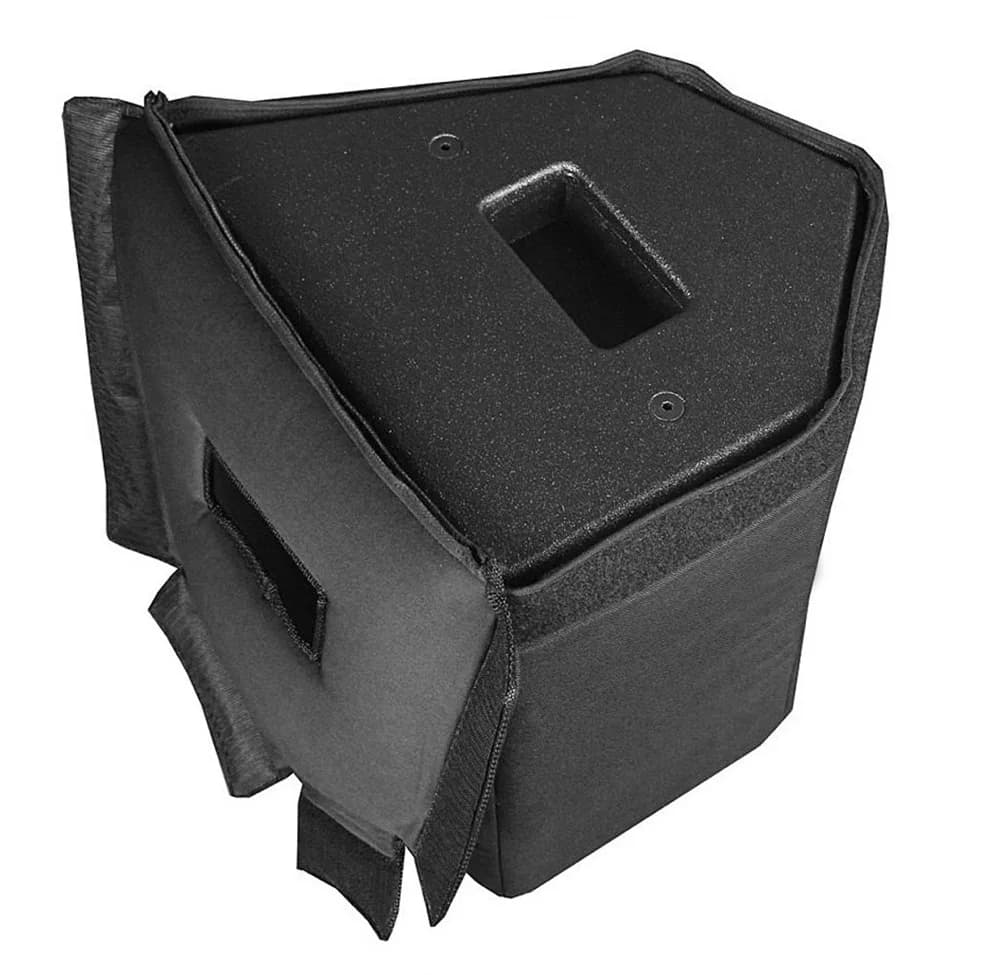

Heavy-duty, production-ready carts and covers custom-designed to DV12-MK3 dimensions.
